Here I wrote everything I consider as my setup.

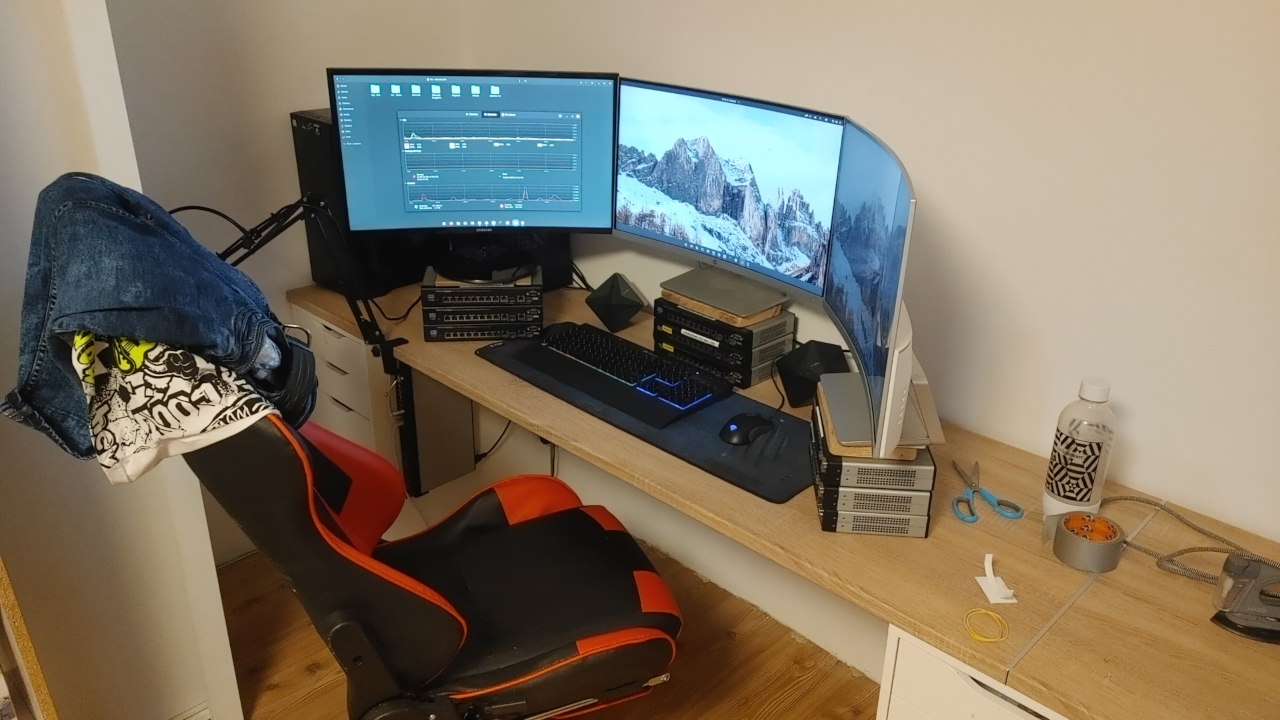

My Workstation⌗

  • OS: Arch Linux - EndeavourOS
  • CPU: Intel Core i5 - 9600K @ 4.6GHz
  • GPU: Nvidia GeForce GTX 1050 Ti - 4GB
  • RAM: HyperX Fury Black DDR4 - 4x8GB (32GB)
  • Motherboard: Asus TUF Z390 Plus Gaming
  • PSU: Corsair RM750x - 750W
  • CPU Coller: 120mm air cooler from BeQuiet
  • Case: Something from Evolveo
  • SSD: M.2 NVMe Samsung 950 EVO - 250GB
  • HDD: Western Digital Blue - 3TB 3.5"

Other⌗

  • Monitor-1: HP Curved 27"
  • Monitor-2: HP Curved 27"
  • Monitor-3: Samsung C27F390F 27"
  • Keyboard: Connect-IT CKB-5051-CS
  • Mouse: Genesis Krypton 190
  • Speakers: Fenda F&D F55X
  • Microphone: Yenkee Studio Streamer Set

⌗

Here I wrote everything regarding to my HomeLab.

HomeLab⌗

UPS⌗

  • APC Smart-UPS RT 2000 (with management card)

NAS⌗

  • OS: TrueNAS Core (version always the newest)
  • Model: 3U Supermicro X8DT3
  • CPU: 1x Intel Xeon L5640 @ 2.26GHz
  • RAM: 8GB DDR3 ECC RAM @ 1333MHz (2x4GB)
  • DATA-RAID: 9x4TB SAS DELL-Certified HDD 3.5" (25.3TB RAID-6)
  • OS-RAID: 2x120GB SATA HDD 3.5" (120GB RAID-1)

Cluster⌗

This cluster is built on top of two identical servers.

  • OS: Proxmox VE (version always the newest)
  • Model: 1U Dell PowerEdge R620
  • CPU: 2x Intel Xeon E5-2630L v2 @ 2.4GHz
  • RAM: 80GB DDR3 ECC RAM @ 1333MHz
  • DATA-RAID: 4x500GB SATA HDD 2.5" (1.5TB RAID-5)
  • OS-RAID: 2x160GB SATA HDD 2.5" (134GB RAID-1)

Game Server⌗

  • OS: Proxmox VE (version always the newest)
  • Model: 2U Dell PowerEdge R720
  • CPU: 2x Intel Xeon E5-2690 v2 @ 3.00GHz
  • RAM: 64GB DDR3 ECC RAM @ 1066MHz
  • DATA-RAID: 3x900GB SAS HDD 2.5" (1.77TB RAID-5)
  • OS-RAID: 2x320GB SATA HDD 2.5" (304GB RAID-1)

Stable-Diffusion⌗

  • OS: Microsoft Windows 10 Pro (22H2)
  • Model: 1U Dell PowerEdge R610
  • CPU: 2x Intel Xeon X5675 @ 3.07GHz
  • RAM: 16GB DDR3 ECC RAM @ 1333MHz
  • DATA-RAID: /
  • OS-RAID: 2x160GB SATA HDD 2.5" (135GB RAID-1)

ONBS (Offsite NAS Backup Server)⌗

  • OS: TrueNAS Core (version always the newest)
  • Model: 2U Dell PowerEdge R510
  • CPU: 2x Intel Xeon L5640 @ 2.26GHz
  • RAM: 8GB DDR3 ECC RAM @ 1333MHz (2x4GB)
  • DATA-RAID: 12x2TB SATA IBM-Certified HDD 3.5" (12.2TB RAID-6)
  • OS-RAID: Pouze jeden 250GB SATA HDD 2.5"

Main Switch⌗

Main Router⌗

Antenna⌗

Note⌗

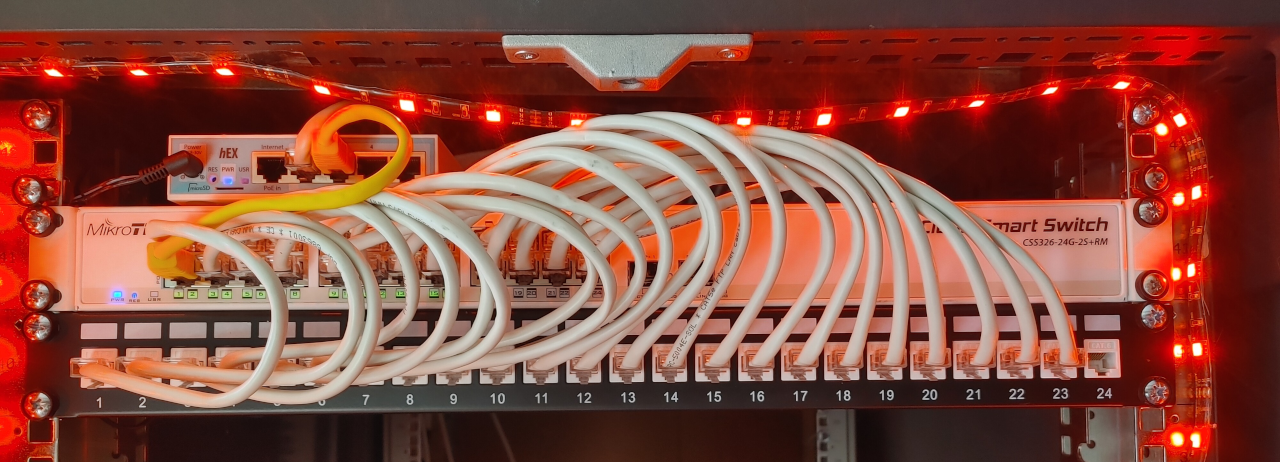

There is also a patch panel with keystones in the rack, but this is not as interesting. The physical connectivity within the rack is solved by using a FTP CAT-5E cables. Every cable is crimped manually.

⌗

Other⌗

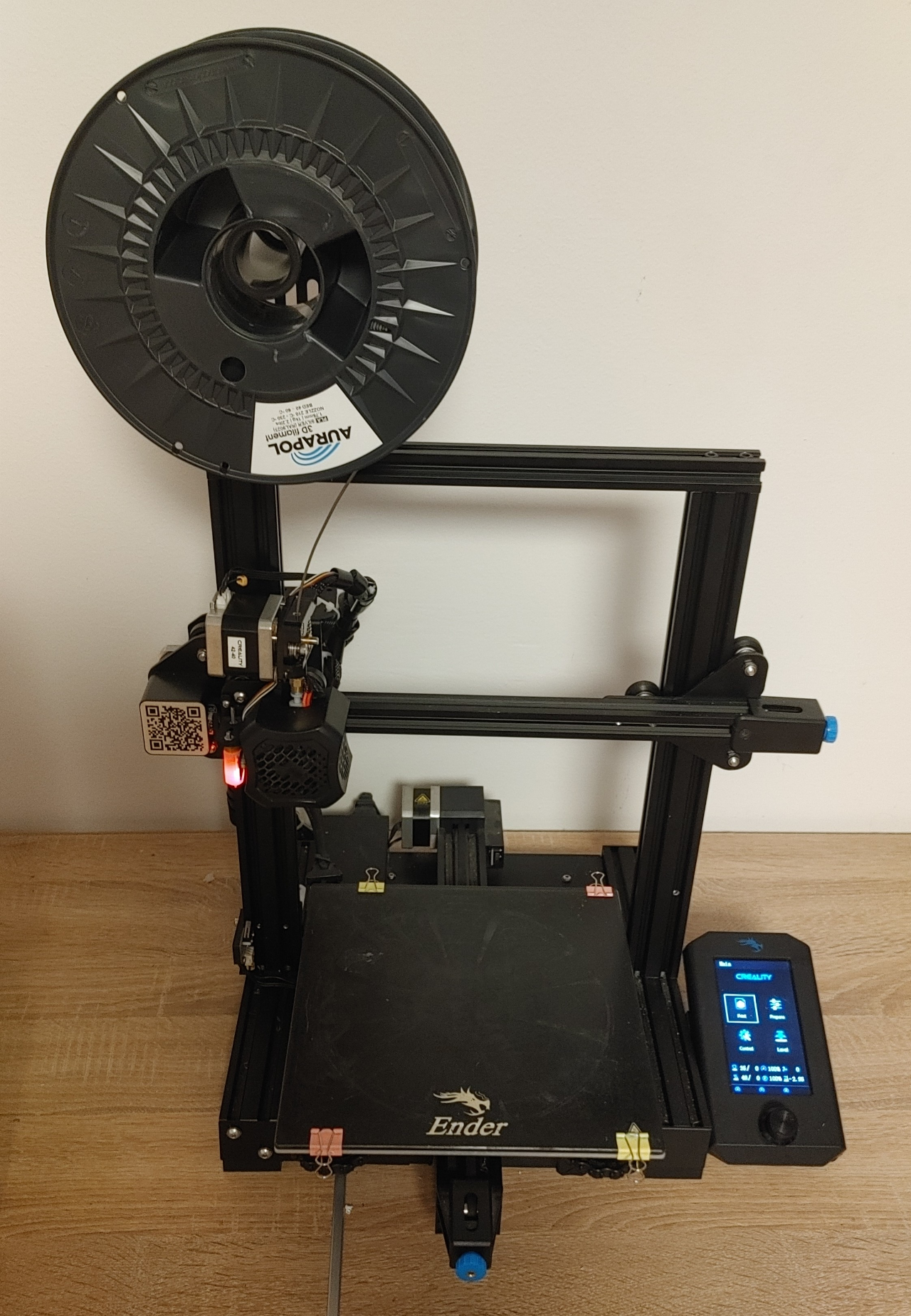

3D Printer: Creality Ender 3 V2 - Customized (transformed from Bowden to Direct Drive)

⌗

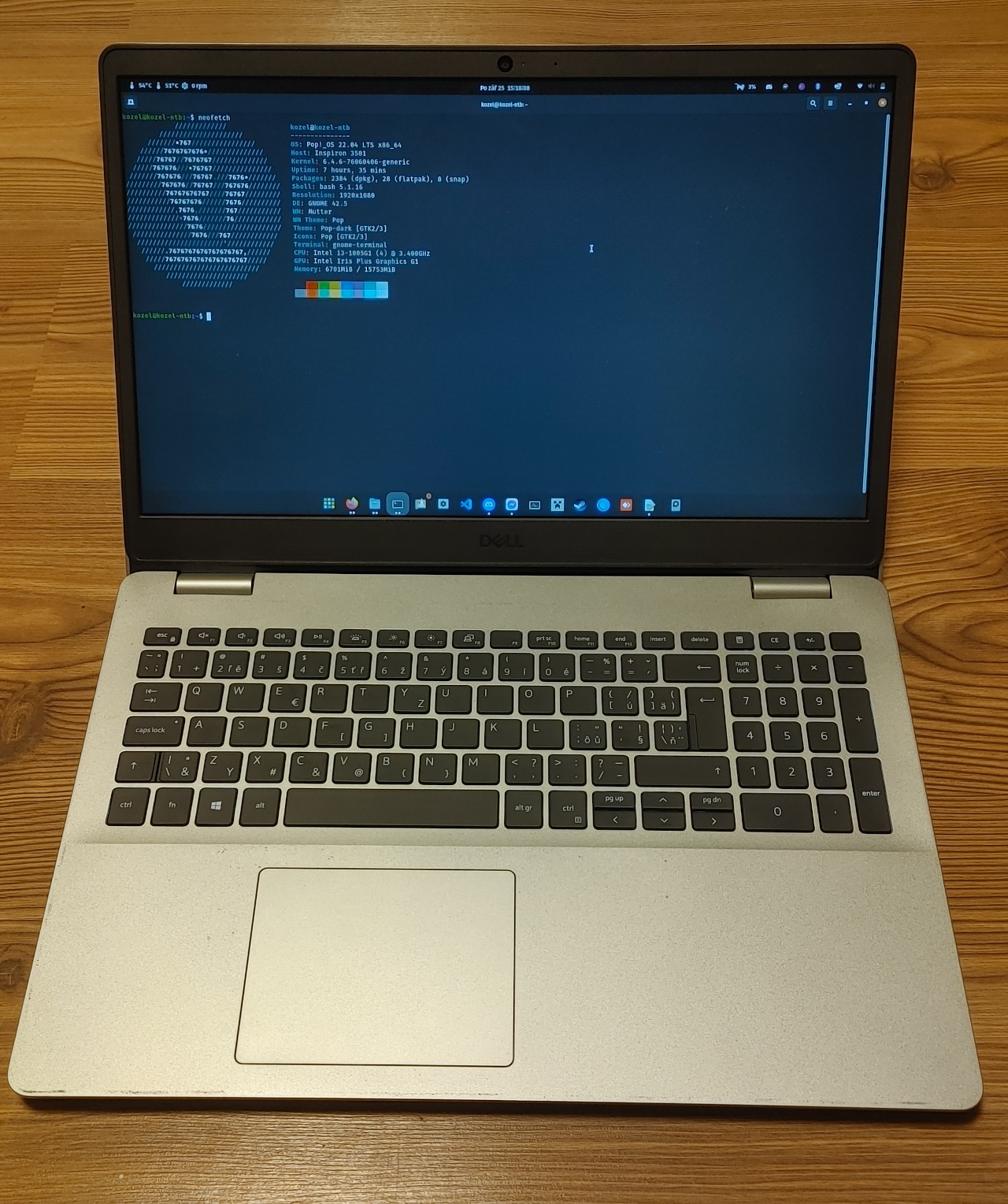

Laptop: Dell Inspiron 3501

⌗

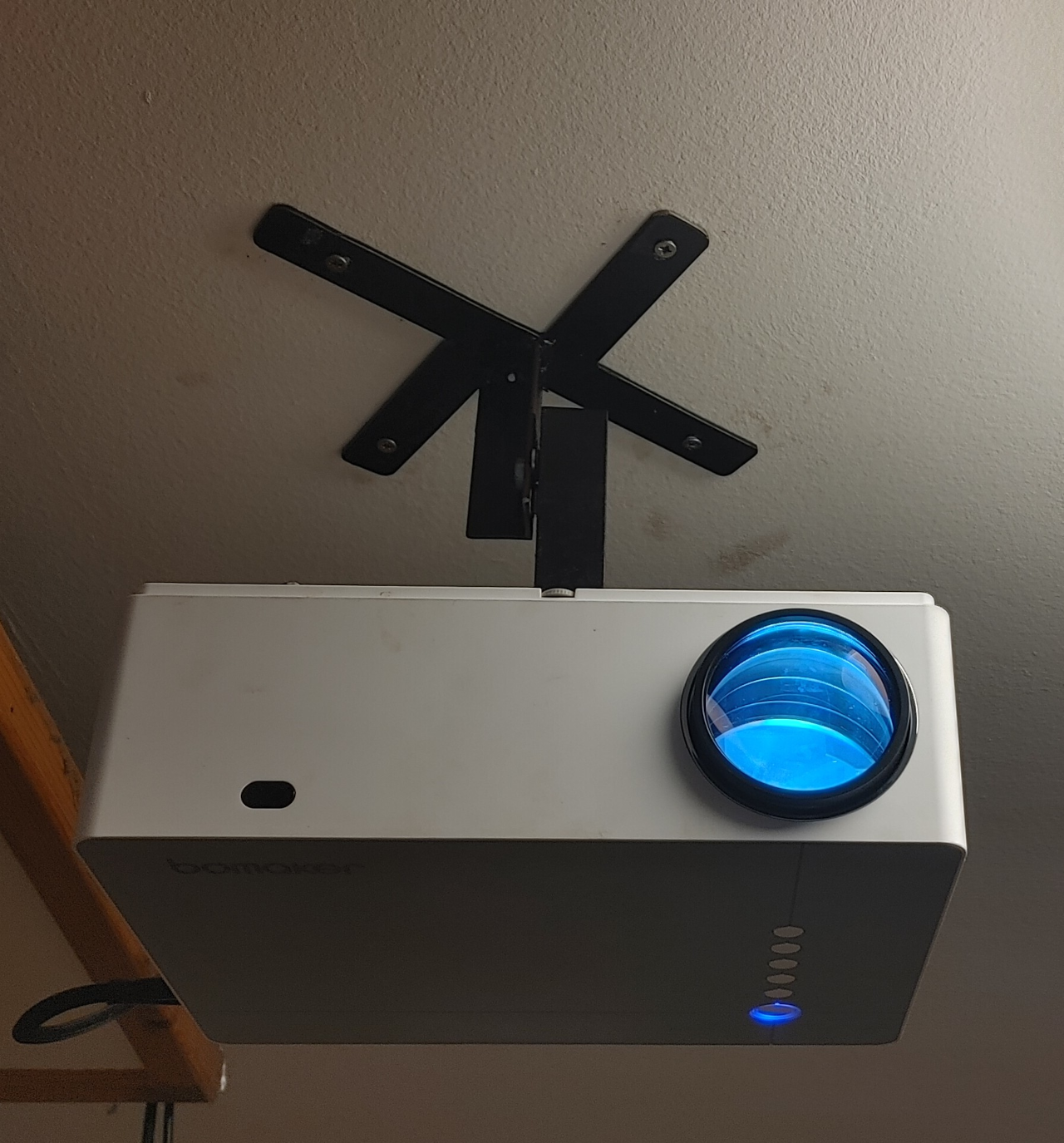

Projector: Bomaker Parrot 1

⌗
